Ranew Outdoors Hydraulic Top Link

Ranews Outdoor Hydraulic Top Links are designed to simplify attaching your Firminator G3 to a tractor. These high-quality components offer reliable performance and ease of use, making them an essential tool for efficient food plot and agricultural work.

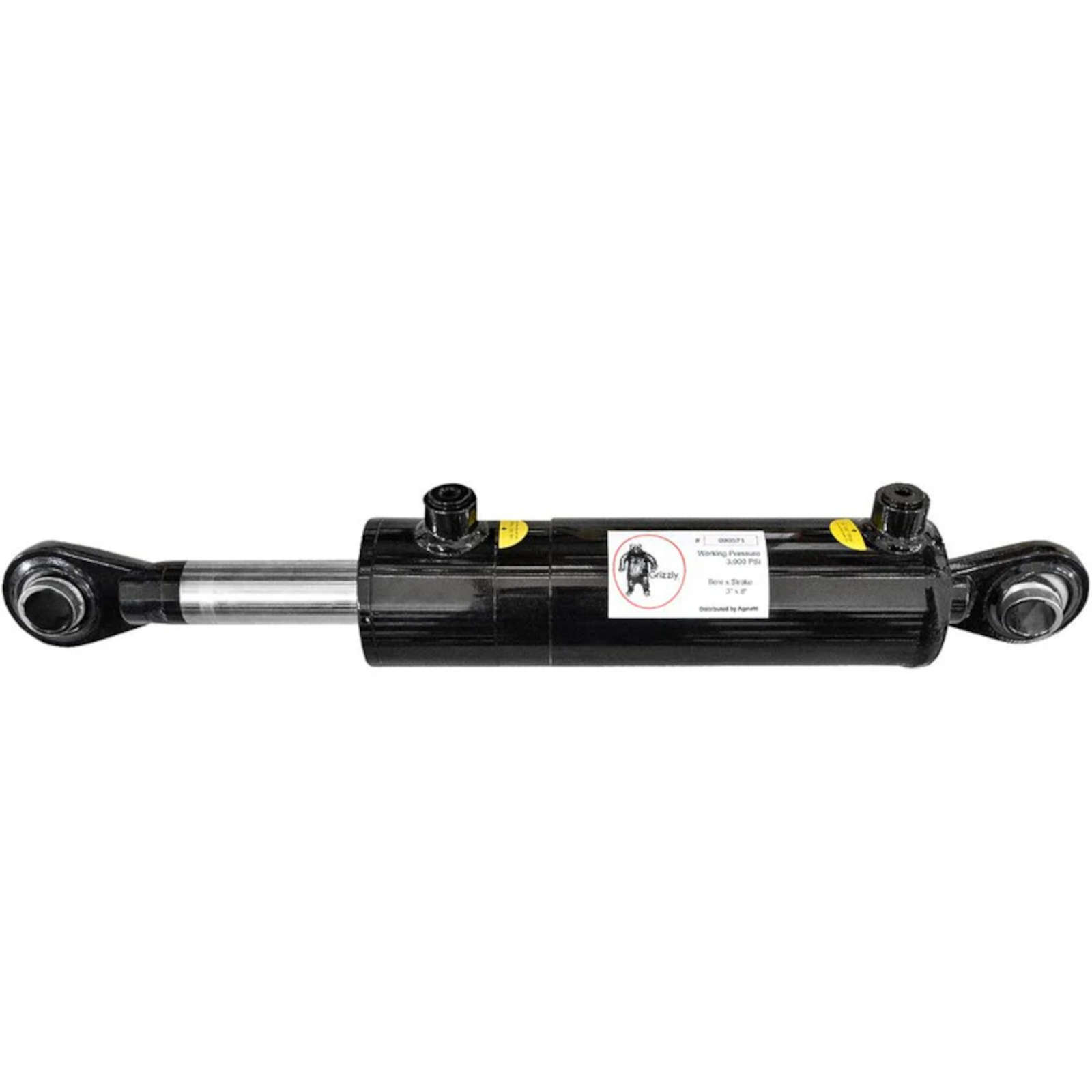

The Category 2 hydraulic top link is built with 3-point hitch implements on tractors within the 45 to 95 horsepower range. It offers a range of motion from 22 inches when retracted to 30 inches when extended. Constructed for durability, the link features a chrome-plated rod that resists corrosion and wear in tough agricultural or maintenance environments. With a 3-inch bore, 8-inch stroke, and 1-inch pin diameter, this heavy-duty cylinder is rated to operate at up to 3,000 PSI, making it a dependable choice for demanding field conditions.

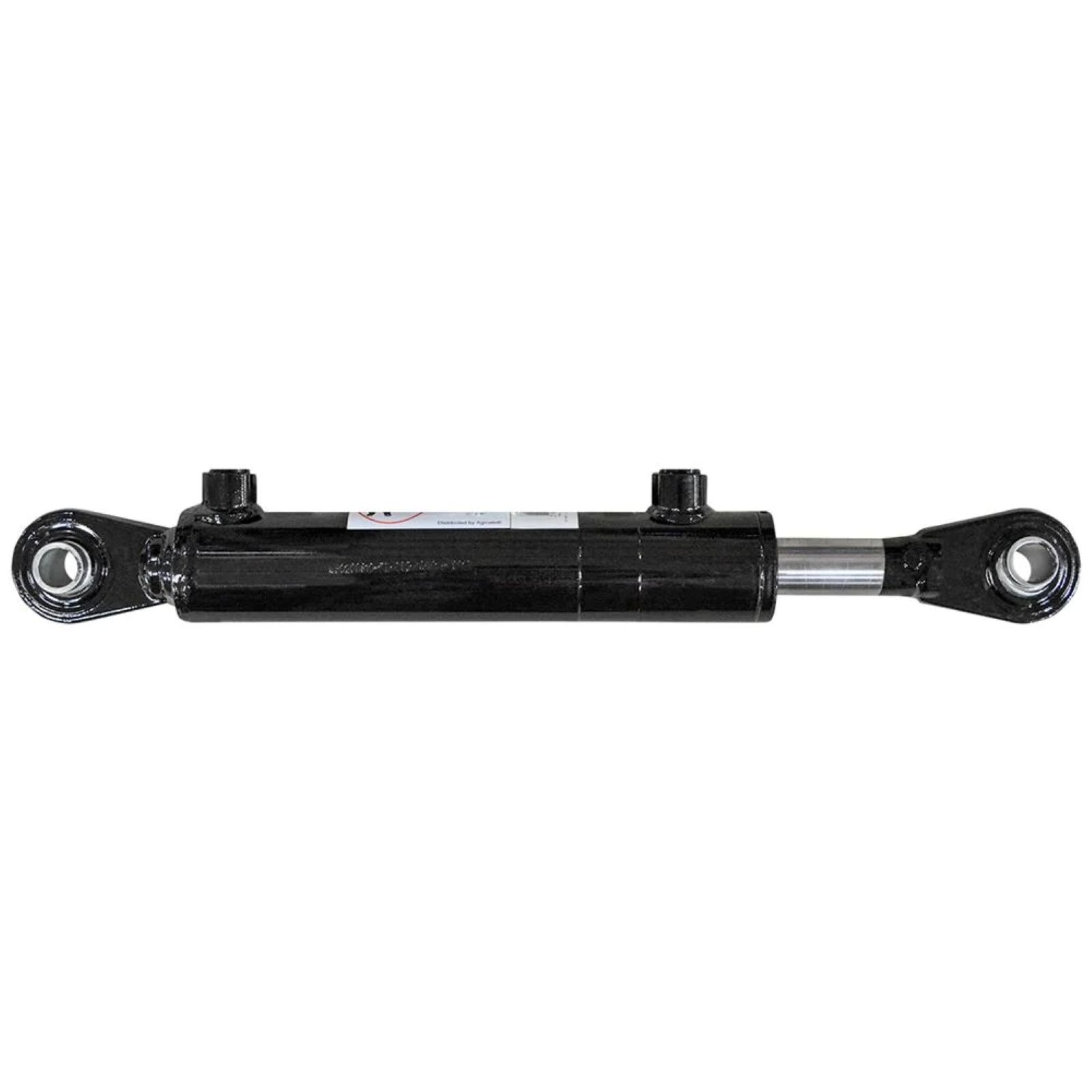

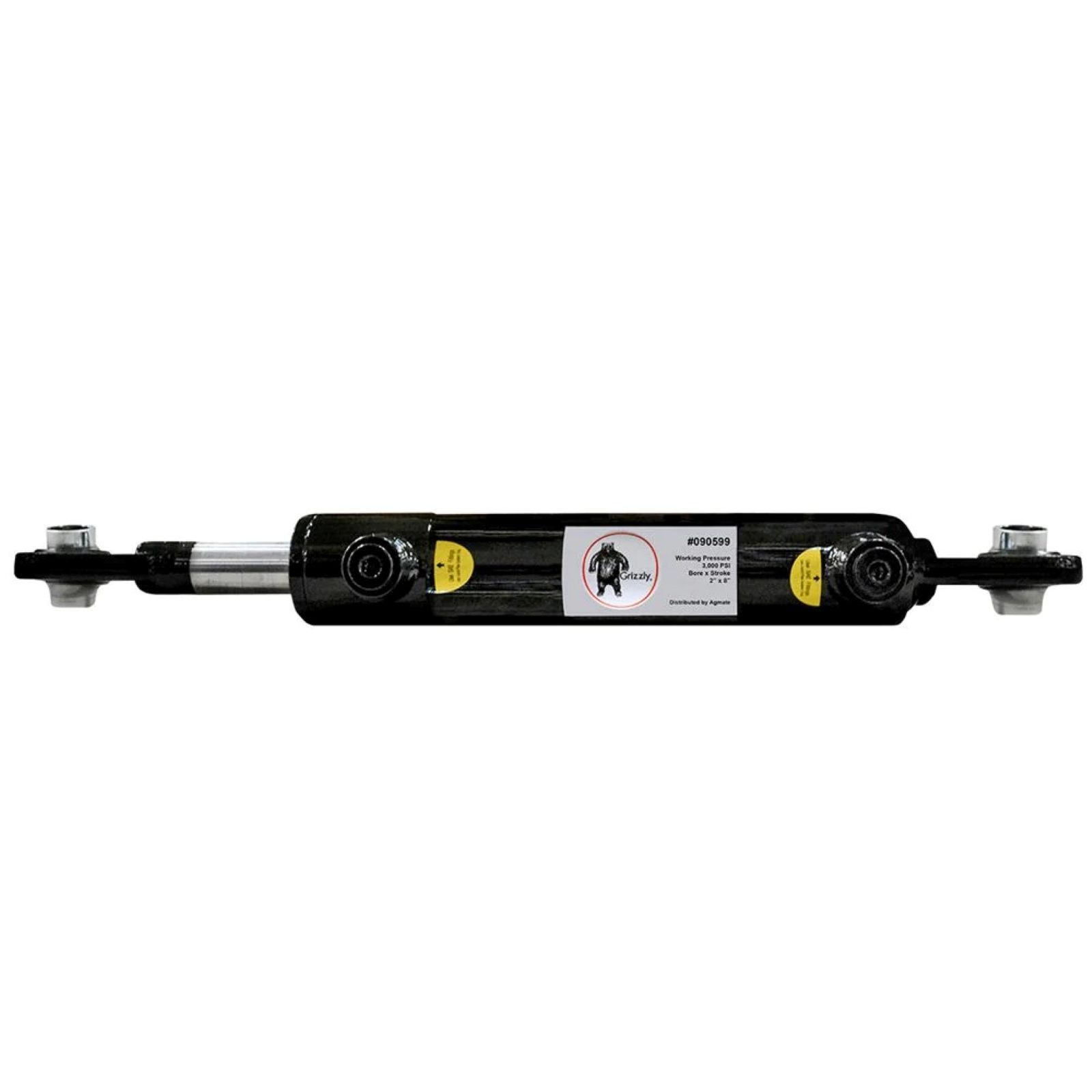

The Category 1 hydraulic top link is similarly engineered for strength and performance but is suited for tractors in the 25 to 55 horsepower range. It extends from 20 inches to 28 inches and features a chrome-plated rod for added longevity. This model includes a 2-inch bore, 8-inch stroke, and a 3/4-inch pin, also capable of handling up to 3,000 PSI of operating pressure. Its rugged construction ensures years of dependable use, even under frequent and intensive agricultural applications.

Both top links are built to provide long-term functionality and are ideal for improving implement control and efficiency when operating the Firminator G3 or other compatible 3-point equipment.
